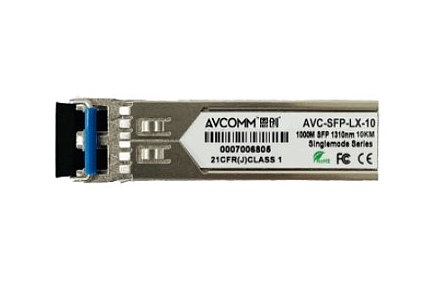

AVC-SFP-LX-10
AVC-SFP模块
千兆SFP光口模块，单模10km，宽温, DDM
产品详细介绍
Product Features
• Compliant to IEEE Std 802.3-2005 Gigabit
• Ethernet 1000Base-LX
• Specifications according to SFF-8074i and
• SFF-8472, revision 9.5
• Digital Diagnostic Monitoring available
• Uncooled 1310nm Fabry-Perot (FP)Laser
• Up to 1.25Gb/s bi-directional data links
• Duplex LC connector compliant
• Single +3.3V DC power supply
• Hot-pluggable SFP footprint
• Class 1 laser safety certified
• Operating temperature：-40℃ to +85 ℃
• Up to 10km on 9/125µm SMF
• RoHS Compliant
Applications
• 1.25Gb/s Ethernet 1000Base-LX
• 1.0625Gb/s Fiber Channel
• Industrial Ethernet Switches
Descriptions
• AVC-SFP-LX-10 SFP transceivers, according to Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8074i and SFF-• 8472, revision 9.5, are designed for data communication on single mode fiber up to 10km. They are compliant with IEEE Std 802.3-• 2005 Gigabit Ethernet 1000Base-LX and Fiber Channel FC- PI-2 Rev.8.0.
• AVC-SFP-LX-10 SFP transceivers offer a wide range of design options, including Digital Diagnostic Monitoring (DDM) features.
• AVC-SFP-LX-10 are compliant with RoHS.
